Description

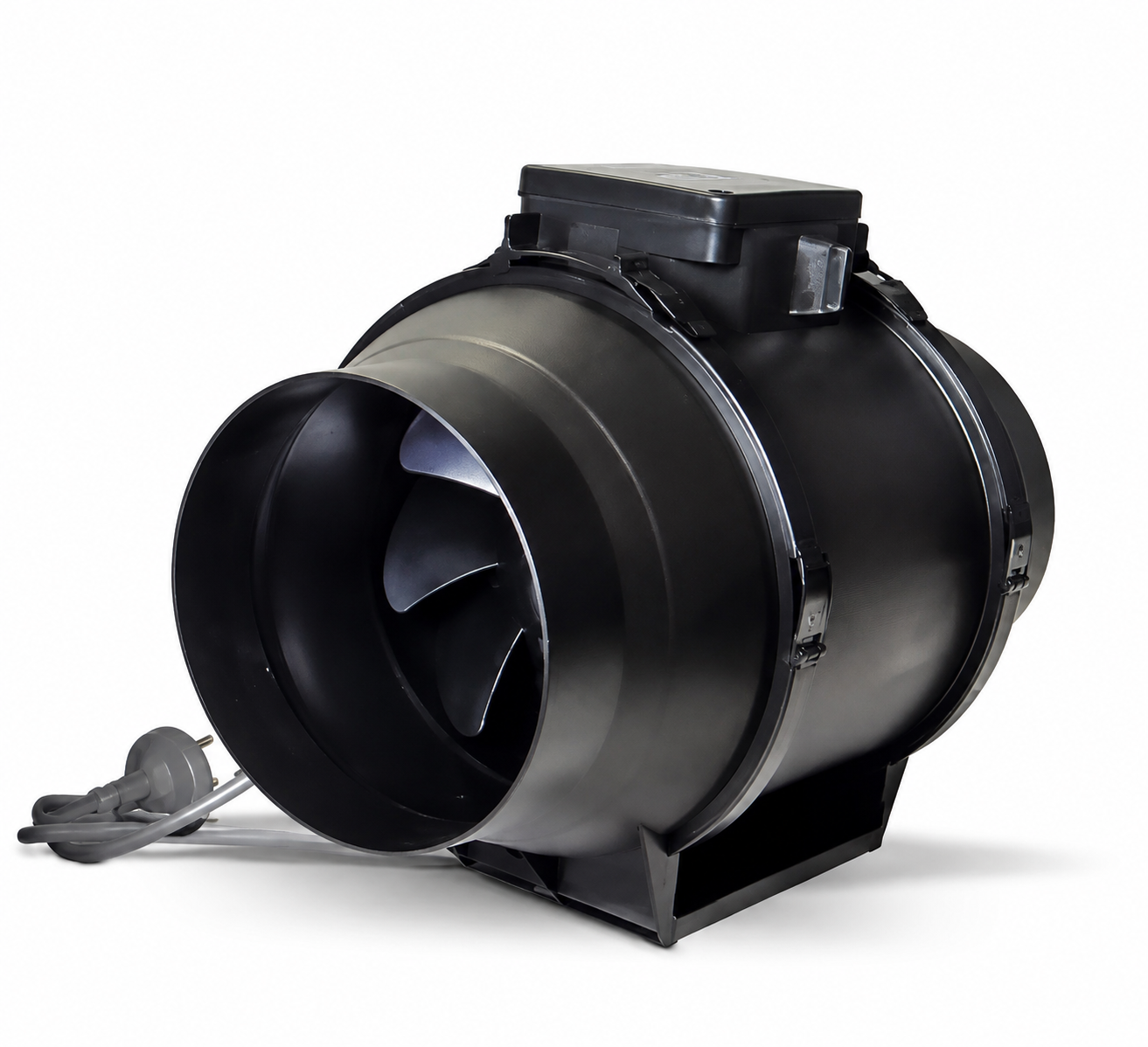

Fantech ProVent RIL-200SW – 200mm Sub Floor Ventilation Fan
The Fantech ProVent RIL-200SW is a high-performance 200mm in-line mixed-flow fan suitable for sub floor ventilation and ducted supply or exhaust air applications.
Its powerful mixed-flow design makes it an excellent choice for improving airflow in subfloor and underfloor areas where poor ventilation can contribute to excess moisture, damp conditions and stale air.
The RIL-200SW features a 2-speed motor with an externally mounted speed switch, allowing the airflow setting to be adjusted to suit the ventilation requirements of the installation.
Key Features
- 200mm in-line mixed-flow ventilation fan
- Suitable for sub floor and underfloor ventilation systems
- High-performance mixed-flow impeller
- Two-speed operation with external 2-speed switch
- 230V single-phase, 50Hz motor
- Plug and lead included for easy installation
- Integrated mounting foot
- Can be mounted in any position
- Removable fan assembly for easier maintenance and servicing
- Reinforced polypropylene housing
- Internal thermal protection
- Maximum operating temperature: 60°C
Technical Specifications
- Model: Fantech ProVent RIL-200SW
- Duct Size: 200mm
- Speed: Low 33 rps / High 42 rps
- Noise @ 3m: Low 42 dBA / High 47 dBA
- Power Input: Low 0.10 kW / High 0.12 kW
- Current: Low 0.45A / High 0.50A
- Maximum Temperature: 60°C
- Approx. Weight: 4.9kg
- Power Supply: 230V, single-phase, 50Hz
Ideal for residential and commercial subfloor ventilation systems where reliable continuous air movement is required.
