Description

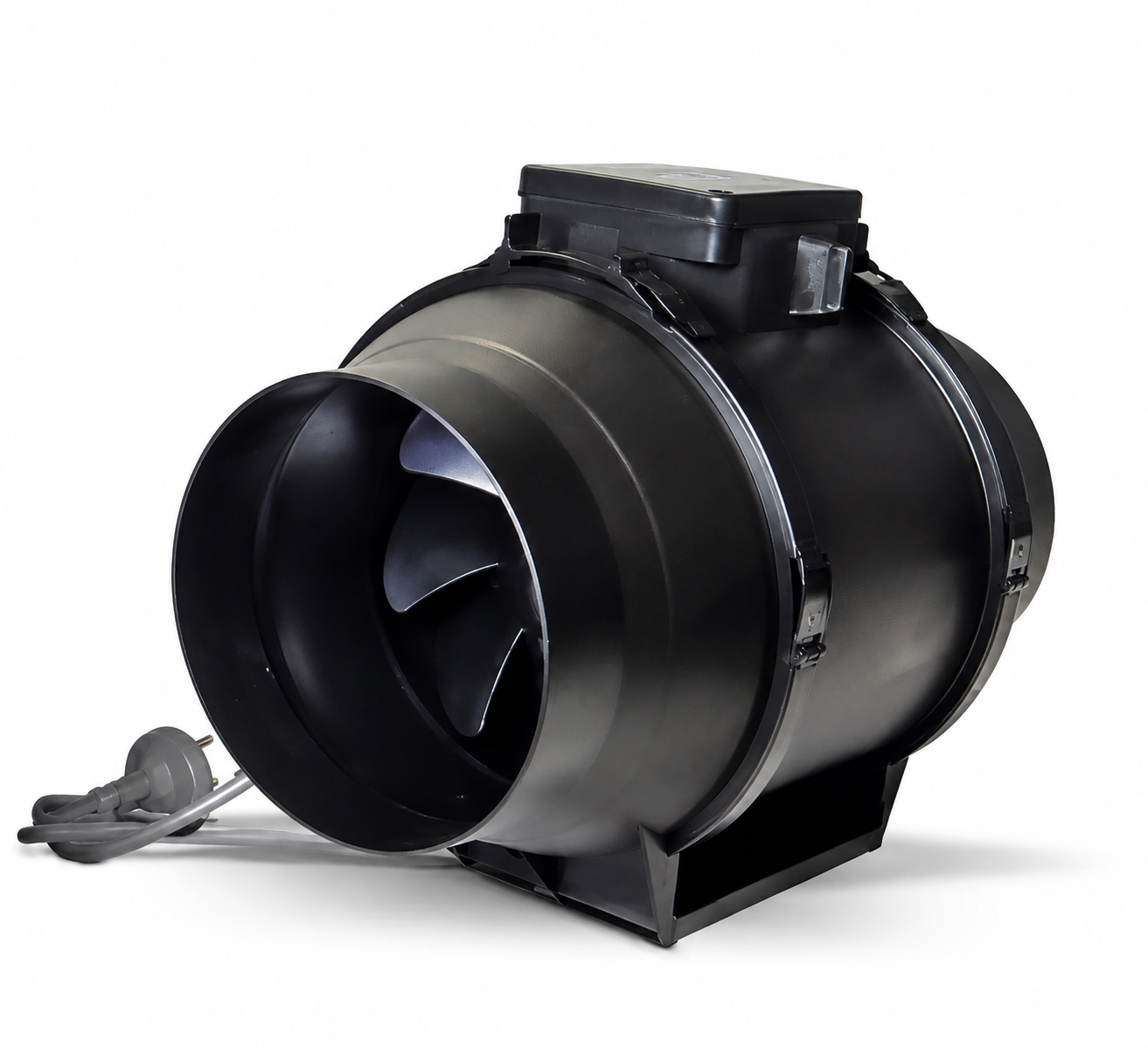

The ProVent RIL-150SW is a high-performance 150mm inline mixed-flow fan designed for ducted supply and exhaust air applications. It is well suited for subfloor and underfloor ventilation systems, helping improve airflow and ventilation in areas where moisture and poor air circulation can be a concern.
The RIL-150SW features a two-speed motor with an externally mounted 2-speed switch, providing reliable airflow with flexible operation. Its compact inline design and integrated mounting foot make installation straightforward, while the fan can be removed for maintenance without disturbing the duct system.
Key Features
- 150mm inline mixed-flow ventilation fan
- High-performance mixed-flow impeller
- Two-speed operation
- External 2-speed switch included
- Plug and lead included for easy installation
- Integrated mounting foot
- Can be mounted in any position
- Fan can be removed for maintenance without disturbing the ductwork
- Suitable for ducted supply or exhaust air applications
- Ideal for subfloor and underfloor ventilation systems
- 230V, single-phase, 50Hz
- IP44 rated
- Approximate weight: 2.7 kg
Model: ProVent RIL-150SW
Duct Size: 150mm
Application: Subfloor ventilation, underfloor ventilation and ducted air supply/exhaust
A practical solution for improving air circulation and ventilation beneath homes and buildings, particularly as part of a professionally designed subfloor ventilation system.
