Description

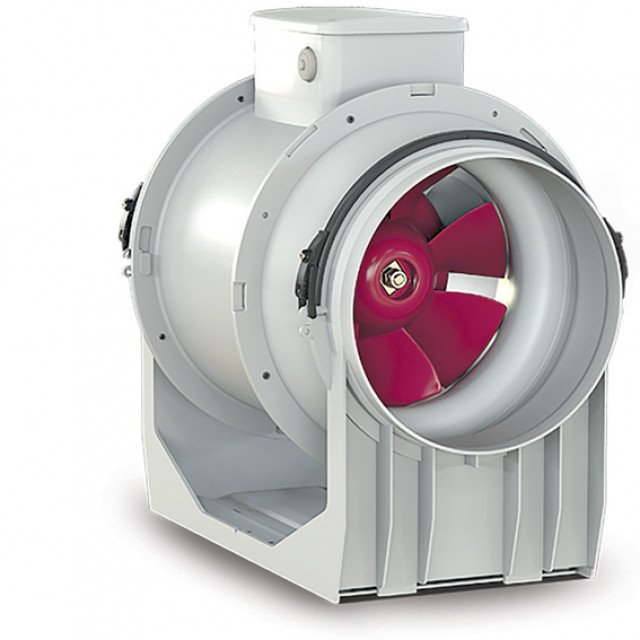

150mm Vortice Lineo Subfloor Ventilation Fan
Suitable for residential, commercial and industrial premises. High performance, low energy consumption, low noise emissions.
Features
Vortice Features
- Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
- Nominal diameter 150 mm.
- Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
- High water resistance: IPX5 (if installed in a duct).
- Speed adjustable through Vortice speed devices.
- Designed to fit into small spaces
- Easily removed to facilitate maintenance
- Optimised air flow, maximised performance and increased efficiency
- Minimal noise emissions
- High flow rates and flow around the axis of the impeller
- Long-life motors have shafts mounted on ball bearings, ensuring a virtually ‘maintenance free’ operation

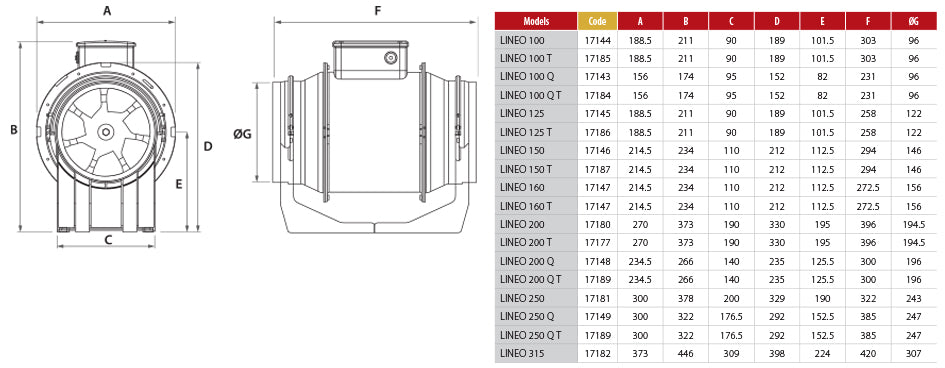

| Models | Speed | Code | V~50/60 HZ | WATTS | AMPS | RPM | Max Airflow (m3/hr) | Max Airflow (l/s) | Max Pressure (Pa) | DBA | KG |
|
LINEO 150 MIXED FLOW
|
Low |
17146
|
220–240
|
40 | 0.18 | 1580 | 385 | 106.9 | 206 | 50.5 |
2.4
|
| High | 58 | 0.26 | 2100 | 550 | 152.8 | 264.9 | 41.4 |
