Description

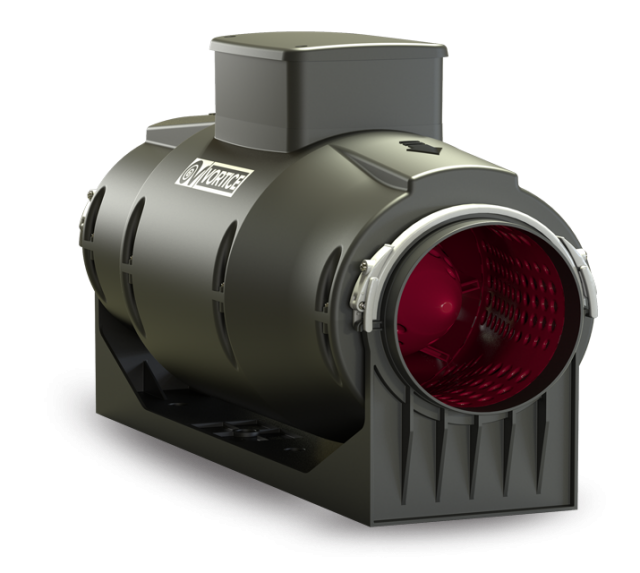

200mm Vortice Lineo Quiet - Sub Floor Ventilation Fan
Suitable for residential, commercial and industrial premises. High performance, low energy consumption, low noise emissions.
Features
Vortice Features
- Designed to fit into small spaces
- Easily removed to facilitate maintenance
- Vortice AC motor with shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller
- Optimised air flow, maximised performance and increased efficiency
- Minimal noise emissions
- Ball bearing motors for at least 30,000 hours of operation without mechanical malfunction
- Timer models available
| Models | Speed | Code | V~50/60 HZ | W | A | RPM | Max Airflow (m3/hr) | Max Airflow (l/s) | Max Pressure (Pa) | Max °C |
|
LINEO 200 QUIET
|
Low |
17164
|
220–240
|
50 | 0.34 | 1880 | 805 | 223.6 | 202 | 50 |
| High | 80 | 0.42 | 2380 | 1045 | 290.3 | 257.9 |
